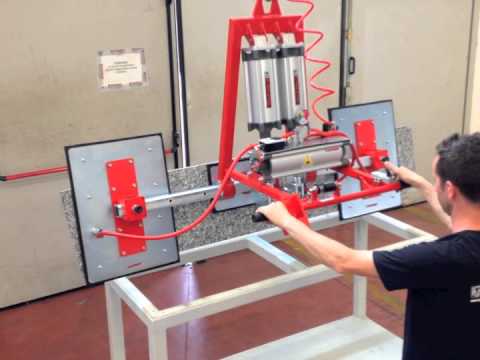

Elephant 3 Pad Vacuum Lifter

Key applications: Elephant 3 Pad Vacuum Lifter for lifting, tilting and positioning stone slabs and worktops during fabrication using a compressed‑air vacuum system.

Suitable for use on the following stone types: Stone slabs and worktops.

Instructions for use: Connect the Elephant 3 Pad Vacuum Lifter to a suitable compressed‑air supply (4–6 bar). Position the suction pads on the slab and activate the vacuum system. Use the scaled gauge to monitor vacuum levels. Adjust pad positions using the quick‑release system, and tilt between 0–90° as required. Use the sliding control valve for safe gripping and releasing.

Technical Specifications:

Tilting System:
Pneumatic tilting structure adjustable from 0° to 90°, allowing easier handling and positioning of materials.

Vacuum System:
Equipped with a continuous vacuum pump powered by compressed air.
Operating pressure: 4–6 bar.

Adjustable Pads:
Features a quick-release system for fast adjustment of the suction pads along the frame.
Pads can also be repositioned between 0° and 90° by simply unthreading and reattaching.

Suction Pads:
Made from high-strength steel and first-quality materials.
Gaskets are composed of rubberised fabric and foam, suitable for various surface finishes — including smooth, flamed, and bush-hammered stone.

Safety Features:

• • Non-return valve prevents accidental release of the load.

  • Sliding control valve enables safe gripping and releasing, with a safety lock to prevent unintentional operation.

  • Vacuum reserve tank made of aluminium, providing a safety buffer to maintain grip even during power loss. Includes a condensation drain valve.

  • Acoustic and visual alarm system automatically signals when vacuum levels are low.

    • Operates autonomously via rechargeable batteries.

    • Supplied with a 220V battery charger.

WARNING: Always double check the maximum capacity of your lifter – this varies between models.
