£36,995.00

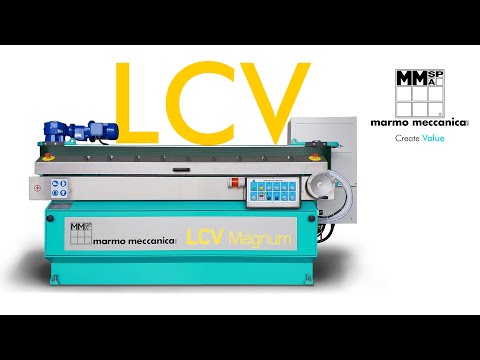

The LCV machine is a polishing unit for straight flat-squared 1 to 6 cm thick marble or granite edges. The working mode is on a continuous process basis; this means that all the pieces are loaded one after the other. Comes with 1500mm roller tables as standard.
Efficient and simple to use, install and maintain, it is the ideal choice for polishing and bevelling flat edges on thicknesses from 1 to 6 cm, on all types of natural and synthetic stone and on ceramic materials. The vertical processing makes it perfect for laboratories that use grippers for handling plates.
N. 6 fixed polishing heads for flat. The first head is equipped with a mechanical stop to mount diamond wheels. For max. ⵁ130 mm wheels
N. 1 chamfering head on the side of the belt (upper chamfer), equipped with a mechanical stop to mount diamond wheels. Fixed inclination 45°. For max. ⵁ130 mm wheels
N. 1 chamfering head on the side opposite to the belt (lower chamfer), equipped with a mechanical stop to mount diamond wheels. Fixed inclination 45°. For max. ⵁ130 mm wheels
The machine is completely closed. Electric motors are located in a watertight compartment, protected from water, dust and grime
All the wastewater is collected through sinks and ejected through a pipe. No water on the floor or under the machine
Carters and other coverings are either painted 3mm steel or 2mm stainless steel. No fiberglass, no plastic
The vertical handling of the slab reduces risk of breaking and needs much less space than the horizontal counterparts
Suitable for all types of natural stone, engineered or synthetic stone, and ceramic materials
Piece dimension range: Thickness 10 mm ÷ 60 mm; Length 270 mm ÷ ∞; Width 80 mm (45 mm with Special Bench for narrow strips) ÷ ∞
